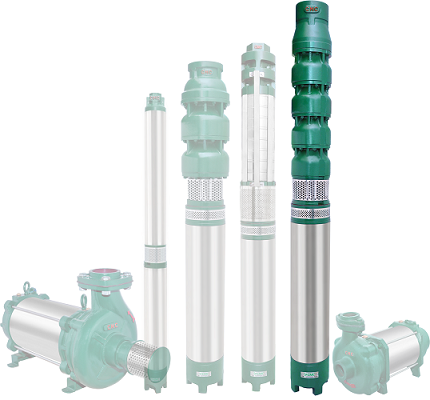

CI Mixed Flow Submersible Pump Set
Description
CMC submersible pump are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, pumps are ideal for a wide variety of applications AS per IS 8034.
CMC Submersible pump represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the Submersible Pump provide low long-term costs and high operating reliability regardless of the application.
The CMC Submersible Pump range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.
Cast Iron submersible Pump made out of premium quality of raw material to ensure that pump is energy efficient, reliable and has a very long life. All components are manufactured as per ISI standard. All pumps are equipped with a reliable non- return valve to reduce water hammer & friction losses. Cast Iron Submersible Pumps are available in 6”.
- Submersible motors are easily re-windable using multi-layer PVC insulated wire for better reliability.
- Motor filled with water gives better cooling to winding as well as bush.
- Self-aligned carbon Stainless steel thrust bearing which withstands high axial thrust load in water lubrication.
- Electrically designed to lower power consumption and operating cost.
- Non-magnetic, corrosion-resistant high-grade stainless steel stator body.
- Dynamically Balancing Rotating part to ensure minimum noise and vibration-free operation
- LTB-4 bush is made with additional centrifugal molding process and 2 % Nickel is added
- Superior designed SS impellers give higher hydraulic performance and greater efficiency and provide higher resistance against wear and tear from sand and other impurities.
- Stainless steel strainer prevents particles over a certain size from entering the pump.
- SS Impeller and SS Bowl are accurately machined by CNC machine to ensure high dimension accuracy.
- Rubber bush and SS hard chrome sleeve increase wear-resistance against sand.
- Lightweight, compact and robust construction design.
- Sprinkler and drip irrigation
- Civil and industries
- Fire-fighting system
- Agriculture
- Bowl- SS-304 (for SS pump)
- Impeller- SS-410 (For SS pump)
- Bowl- CI (for CI pump)
- Impeller- Fiber Glass Reinforced Thermo Plastic (FRTP) OR SS-410 (For CI pump)
- Shaft- SS-431
- Stator Body- SS-202(1% nickel)
- Thrust Bearing Set- Carbon Bearing With SS Plate
- Bush- LTB-4
- Winding Wire- EC Grade Copper
- HP Range- 3 HP to 20 HP
- Stage Range- 2 Stage to 24 Stage
- Head Range- 40 Feet To 1150 Feet
- Discharge(Flow)- 50 LPM to 900 LPM
