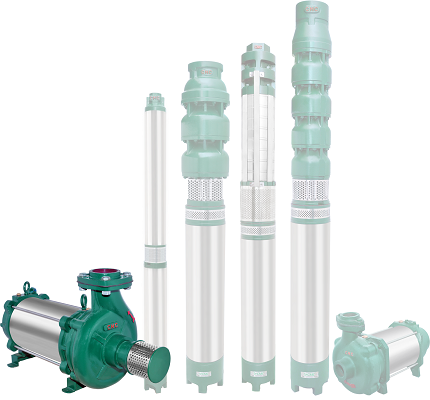

SS Heavy Body Horizontal Open Well Pump Set
Description
CMC Horizontal Open well Submersible Pumps are manufactured as per IS: 14220. The high-grade cast iron material with unique hydraulic design gives better performance and efficiency. Since these pumps are designed for underwater applications.
CMC Submersible pump products are engineered to perfection with High Efficacy at all stages to ensure a trouble free service.
- Compactly designed pump set for easy handling and installation.
- High-grade cast iron for a better life even in heavy and contaminated water.
- Front High Grade Fiber bearing with Stainless Steel Thrust Plate and Backside High Grade Fiber Bearing with Gunmetal Bush for longer life under various conditions.
- Stamping is done with Electrical Grade Silicon Steel for lower power consumption and higher product life.
- Advanced Hydraulic Design for highest energy efficiency in the pump set.
- Pinhole on drain plug allows the motor to be filled with water on its own to maintain the water level inside the motor.
- Dynamically Balancing Rotating part to ensure minimum noise and vibration-free operation
- Irrigation from open wells, specially where there is a wide fluctuation in water levels
- Community water supply from open wells
- Canals and rivers
- Agriculture
- Civil and industries
- Impeller- Cast iron
- Casing –Cast Iron
- Shaft- SS-431
- Stator Body- SS-202(1% nickel)
- Thrust Bearing Set- Fiber Thrust Bearing Set
- Bush- LTB-4
- Winding Wire- EC Grade Copper
• HP Range- 3 HP to 10 HP
• Head Range- 20 Feet To 150 Feet
• Discharge(Flow)- 400 LPM to 1200 LPM
