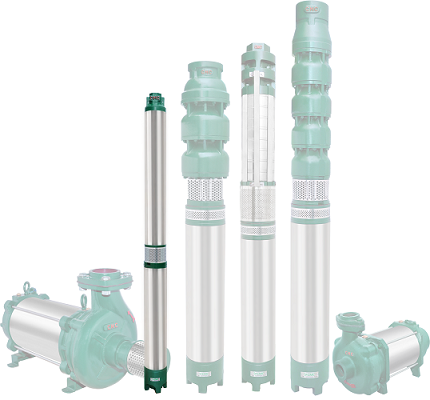

3” Submersible Pump set
Description
CMC Submersible Pump Manufactures Wide Range of Submersible Pump with the Help of Innovative Technology and Latest CNC Machines. CMC Produces Reliable And Quality Products. These Water Pump and Motor Are As Per IS 8034. The Submersible Pump Range Is Manufactured In Noryl Submersible Pump. CMC Offers Noryl Pump In 3”. High Operating Efficiencies of Noryl Pump Set Result into High Water Discharge Rate and Lower Power Consumption. The Pump Sets Are Compact And Slim & Can Be Easily Installed In Narrow Bore Wells.
- Submersible Motors Are Easily Re-Windable Using Multi-Layer PVC Insulated Wire for Better Reliability.
- Motor Filled With Water Gives Better Cooling To Winding As Well As Bush.
- Self-Aligned Carbon Stainless Steel Thrust Bearing Which Withstands High Axial Thrust Load In Water Lubrication.
- Electrically Designed To Lower Power Consumption And Operating Cost.
- Non-Magnetic, Corrosion-Resistant High-Grade Stainless Steel Stator Body.
- Motor Is Available In Capacitor Start And Run Design.
- LTB-4 Bush Is Made With Additional Centrifugal Molding Process And 2 % Nickel Is Added
- Superior Designed Noryl Impellers and Diffusers Give Higher Hydraulic Performance and Greater Efficiency and Provide Higher Resistance against Wear And Tear from Sand and Other Impurities.
- Stainless Steel Strainer Prevents Particles Over A Certain Size From Entering The Pump.
- Dynamically Balancing Rotating Part to Ensure Minimum Noise and Vibration-Free Operation
- Lightweight, Compact and Robust Construction Design.
- Sprinkler And Drip Irrigation
- Civil And Industries
- Fire-Fighting System
- Agriculture
- Bowl- Noryl
- Impeller- Noryl
- Shaft- SS-410
- Stator Body- SS-202(1% Nickel)
- Thrust Bearing Set- Carbon Bearing With SS Plate
- Bush- LTB-4
- Winding Wire- EC Grade Copper
- HP Range- 0.5 HP To 2 HP
- Stage Range- 8 Stage To 25 Stage
- Head Range- 30 Feet To 300 Feet
- Discharge(Flow)- 12 LPM To 110 LPM
